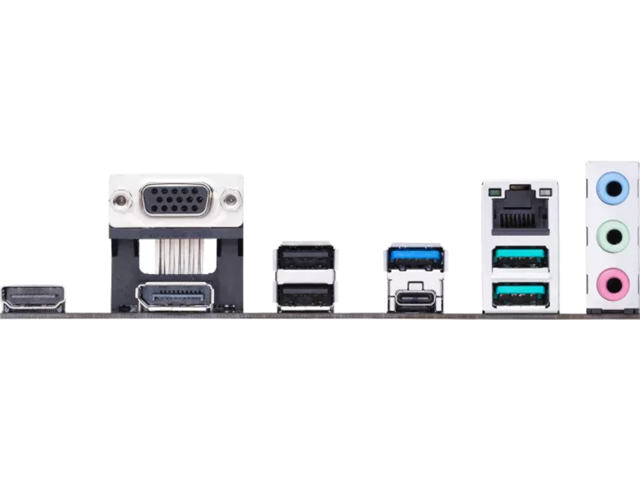

Интерфейс:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI^® port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Wirless & Bluetooth: Само M.2 слот (Key E, CNVi & PCIe)* *Wi-Fi модулът се продава отделно.

Памет:

• 4 x DIMM, макс. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, небуферирана памет*
• Двуканална архитектура на паметта
• Поддържа Intel® Extreme Memory Profile (XMP)
• OptiMem II

Слотове за разширение:

• Процесори Intel® 12-то поколени:

1. 1 x PCIe 4.0 x16 слот

• Intel® B660 чипсет:

1. 1 x PCIe 3.0 x16 слот (поддържа x4 режим)
2. 2 x PCIe 3.0 x1 слота

Съхранение:

• Процесори Intel® 12-то поколени:

1. M.2_1 slot (Key M), type 2242/2260/2280

• Intel® B660 чипсет:

1. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
2. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
3. 4 x SATA 6Gb/s ports

Конектори:

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage related

• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ header
