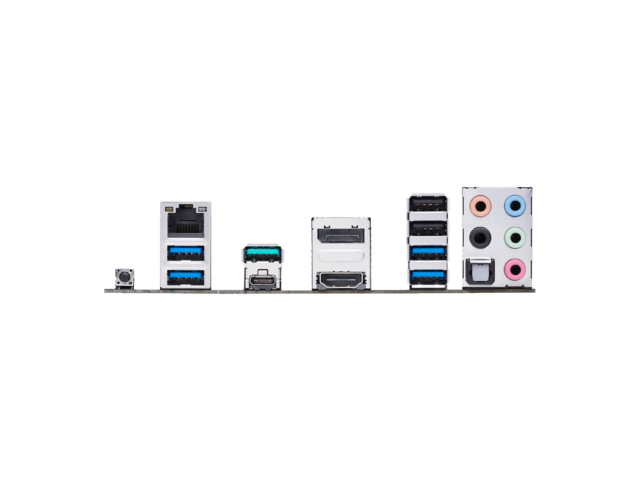

Интерфейс:

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 (1 x USB Type-C^®+1 x Type-A)
• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 5 x Audio jack(s)
• 1 x BIOS FlashBack^™ Button(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 1 x PCIe 3.0/2.0 x16 (x8 mode)
• 1 x PCIe 3.0/2.0 x16 (x4 mode)
• 1 x PCIe 2.0 x16 (max at x4 mode)
• 3 x PCIe 2.0 x1

Съхранение:

3то/2ро/1во поколение AMD Ryzen/ 2ро и 1во поколение AMD Ryzen с Radeon Vega Graphics процесори:

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Athlon с Radeon Vega Graphics процесори:

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)'

3то/2ро/1во поколение AMD Ryzen/ 2ро и 1во поколение AMD Ryzen с Radeon Vega Graphics/ Athlon с Radeon Vega Graphics процесори:

• 2 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 10

• AMD B450 chipset :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*³
  4 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 10

Памет:

• 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHzMHz
• Небуферирана памет
• Двуканална архитектура на паметта

Конектори:

• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 2 x Aura RGB Strip Header
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
• 1 x SPI TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
