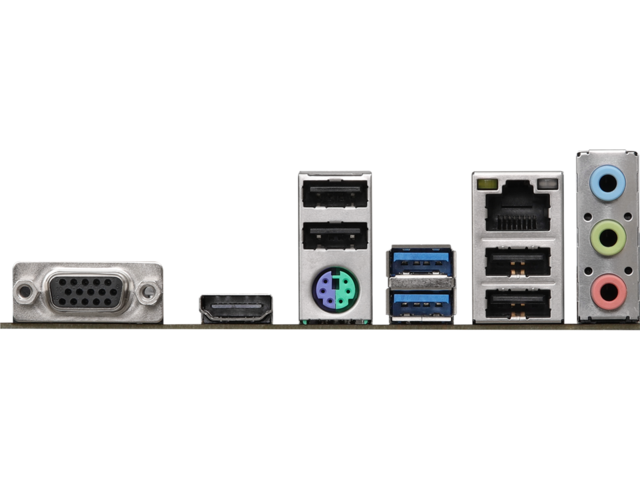

Интерфейси:

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone



Памет:

• 2 x DDR4 DIMM, поддържащи до 64GB системна памет
• Двуканална архитектура на паметта
• Поддържа DDR4 non-ECC, небуферирана памет до 3200
• Поддържа ECC UDIMM
•  Intel Extreme Memory Profile (XMP) 2.0



Слотове за разширение:

• CPU: 1 x PCIe 4.0 x16 слот (PCIE2), поддържа x16 режим
• Chipset: 1 x PCIe 3.0 x1 слот (PCIE1)



Съхранение:

• 1 x Ultra M.2 Socket (M2_2, Key M), поддържа тип 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) режим
• 4 x SATA3 6.0 Gb/s конектори



Конектори:

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
