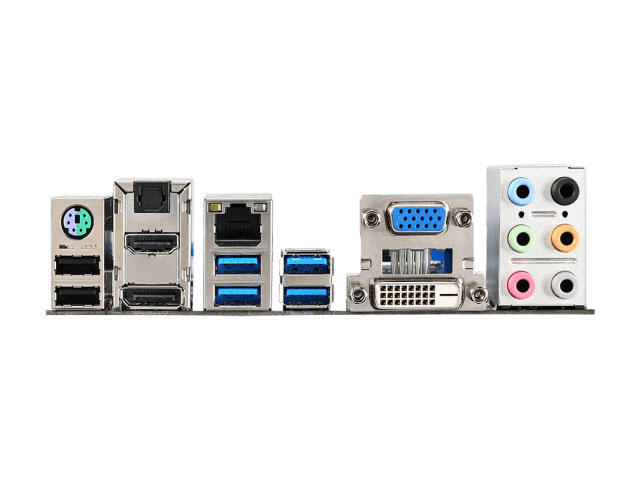

Интерфейси (заден панел):

• 1x PS/2клавиатура/мшка
• 2x USB 2.0
• 4x USB 3.0
• 1x VGA
• 1x DVI-D
• 1x DisplayPort
• 1x HDMI
• 1x LAN (RJ45)
• 1x Optical S/PDIF OUT connector
• 6x аудио жакове

• 6 x SATA 6Gb/s - поддържа RAID 0/1/5/10

Слотове за разширение:

• 1x PCIe 3.0 x16 slot (PCI_E1, supports x16 speed)
• 1x PCIe 2.0 x16 slot (PCI_E4, supports x4 speed)
• 2x PCIe 2.0 x1 slots (ако се интсалира карта на единия слот, друия е невалиден)

Конектори:

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 3x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
• 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
• 1x 4-pin CPU fan connector
• 2x 4-pin system fan connectors
• 1x Clear CMOS jumper
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Serial port connector
• 1x Parallel port connector
