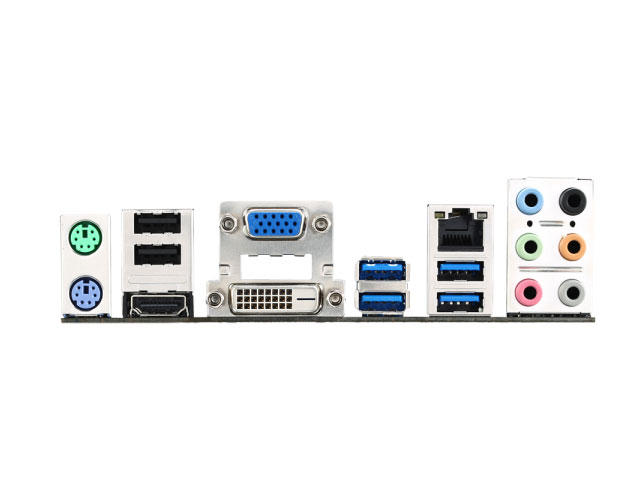

Интерфейси (заден панел):

• 1x PS/2 клавиатура
• 1x PS/2 мишка
• 2x USB 2.0
• 4x USB 3.0
• 1x VGA
• 1x DVI-D
• 1x HDMI
• 1x LAN (RJ45)
• 6x аудио жакове
• 6x SATA 6Gb/s - поддържа RAID 0/1/10

Слотове за разширение:

• 1x PCIe 3.0 x16 slot (PCI_E1 supports up to x16 speed)
• 1x PCIe 2.0 x16 slot (PCI_E3 supports up to x4 speed)

• 1x PCIe 2.0 x1 slot

• 1x PCI slot

Конектори:

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x 3-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector
• 1x Parallel port connector
• 1x Clear CMOS jumper
