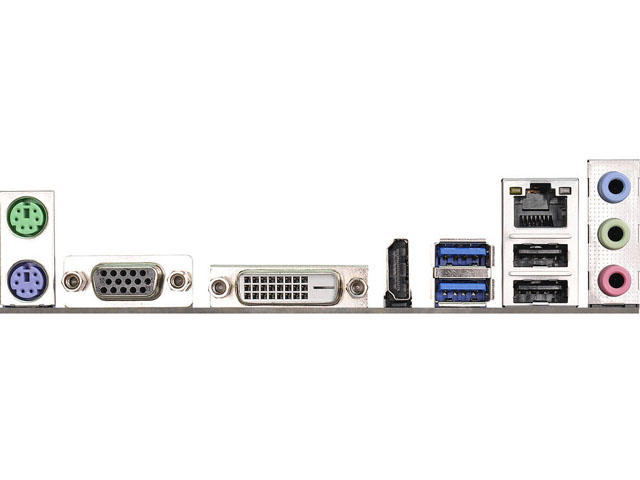

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 2 x USB 2.0
• 2 x USB 3.0
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
• 2 x PCI Express 2.0 x1 Slots

Конектори:

• 1 x Print Port Header
• 2 x COM Port Headers
• 1 x TPM Header
• 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector (3-pin)
• 1 x Chassis Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))(USB3_2_3 е споделено с  USB_45)

Съхранение:

•  2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Комплектът включва:

• I/O Shield

• 2 x SATA кабел

Сертификати за безопастност:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
