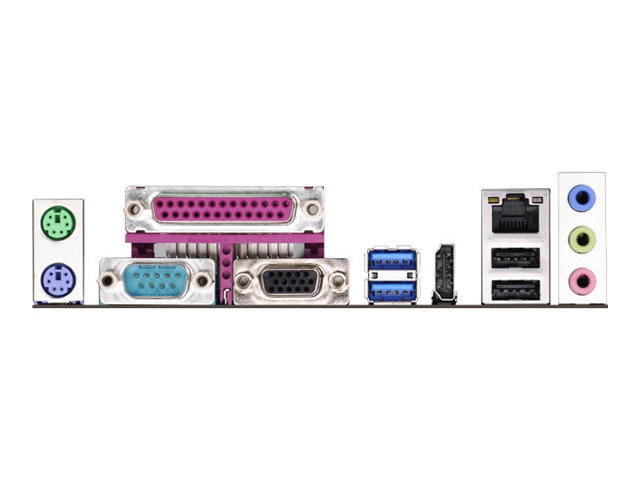

Интерфейси:

• 2 x SATA2 3.0
• 2 x SATA3 6.0
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x Serial Port: COM1
• 1 x Parallel Port (ECP/EPP support)
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD аудио жака: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
• 5 x PCI Express 2.0 x1 Slots

Конектори:

• 1 x IR Header
• 1 x COM Port Header
• 1 x Power LED Header
• 1 x TPM Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 2 x SLI/XFire Power Connectors
• 1 x Front Panel Audio Connector
• 1 x SPDIF Out connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

Комплектът включва:

• Упътване за бързо стартиране
• 2 x SATA кабел
• Driver CD

Сертификати: FCC, CE и WHQL
